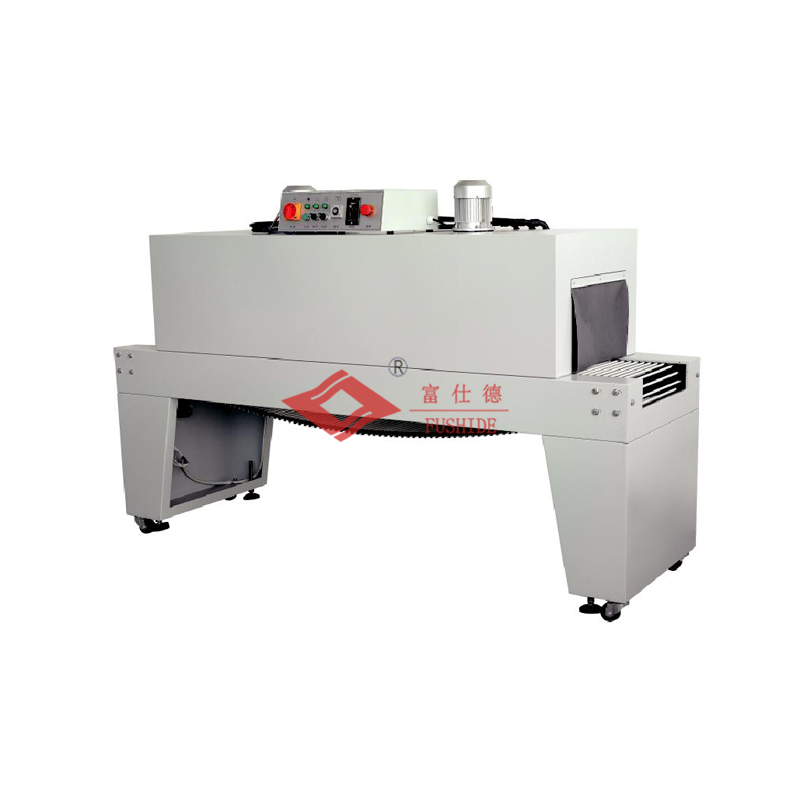

RS-6225PRS-6235P heat shrinking machine
Voltage：3Φ/380V-3Φ/380V
Power Unit：15KW-18KW
Net weight：320KG-380KG
Machine overall size：L2000*W870*H1400(mm)-L2000*W870*H1550(mm)
Shrinkable furnace size：L1500*W620*H250(mm)-L1500*W620*H350(mm)
Max package size：L1200*W520*H200(mm)-L1200*W520*H300(mm)
Packing speed：0-15(m/min)-0-15(m/min)
Product Details
Questions
Online Feedback
Technology
*Adopt rustless steel heat pipe,with feature in quick warming-up, 40% power saving,and automatically constant temperature control.
*The heated air circulate in heat shrinkable furnace is high efficiency,temperature uniformity,shrinkable effect is nice. *Adopt speed-adjustable motor and it is convenient to adjust speed.
*Thermal cycling motor with overloading protection system will avoid over-heat in local and machine damage.
Usable range
Applied to bulk production in industy like electronics,hardware, plastics, cosmetics, food, printings,building materials, pharmaceuticals, stationery, printed materials, ceramics and other handicrafts.
Applied to shrinking film including PVC, POF, PP,PET ,etc.

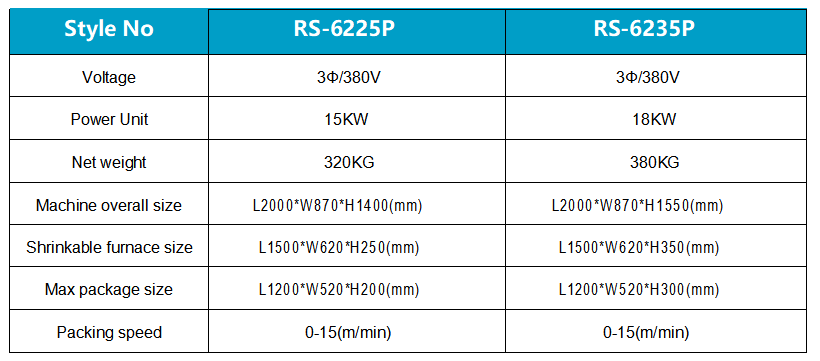

Technical data
We reserved the rights to modify the machine parameters,and actual parameter will subject to final confirmation.
------------------------------------------------------------------
